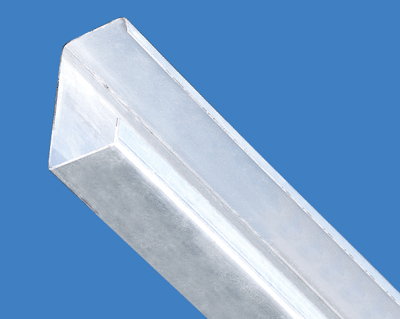

                         High Tensile C-Purlin

 JIS G3350:1987 / Manufacturer's Standard
Dimension mm (in)
Thickness
Section Area
Unit Weight
Centre of Gravity
Secondary Moment of Area
Radius of Gyration of Area
Modulus of Section
Centre of Shear
mm
cm
cm4
cm
cm3
cm
H x A x C
T
cm 2
KG/m
Cx
Cy
Ix
Iy
ix
iy
Zx
Zy
Sx
Sy
100x50x16
(4x2x5/8)
1.6
3.51
2.80
5.00
1.77
58.73
13.19
4.03
1.91
11.75
4.08
4.10
0
2.0
4.38
3.50
5.00
1.77
72.28
16.08
4.02
1.89
14.46
4.98
4.10
0
2.5
5.42
4.36
5.00
1.77
88.60
19.49
4.00
1.87
17.72
6.04
4.10
0
125x50x16
(5x2x5/8)
1.6
3.91
3.10
6.25
1.60
98.37
14.22
4.98
1.88
15.74
4.18
3.84
0
2.0
4.87
3.86
6.25
1.60
121.30
17.34
4.94
1.87
19.41
5.11
3.84
0
2.5
6.06
4.83
6.25
1.60
149.04
21.02
4.91
1.84
23.85
6.19
3.84
0
150x50x16
(6x2 1/2x5/8)
1.6
4.76
3.85
7.50
2.03
176.98
28.24
6.02
2.40
23.60
6.31
4.88
0
2.0
6.00
4.75
7.50
2.03
218.74
34.61
6.00
2.39
29.17
7.74
4.88
0
2.5
7.38
5.87
7.50
2.03
269.58
42.20
5.98
2.36
35.94
9.44
4.88
0
200x75x16
(8x3x5/8)
1.6
5.86
4.70
10.00
2.11
376.22
43.68
7.91
2.70
37.62
8.10
5.24
0
2.0
7.24
5.78
10.00
2.11
466.00
53.65
7.89
2.68
46.60
9.96
5.24
0
2.5
9.06
7.12
10.00
2.11
575.87
65.61
7.87
2.66
57.59
12.18
5.24
0
